Rocket-fast on the climbs with the agile and light THREE·4

#NoOrdinaryWheels

1 8

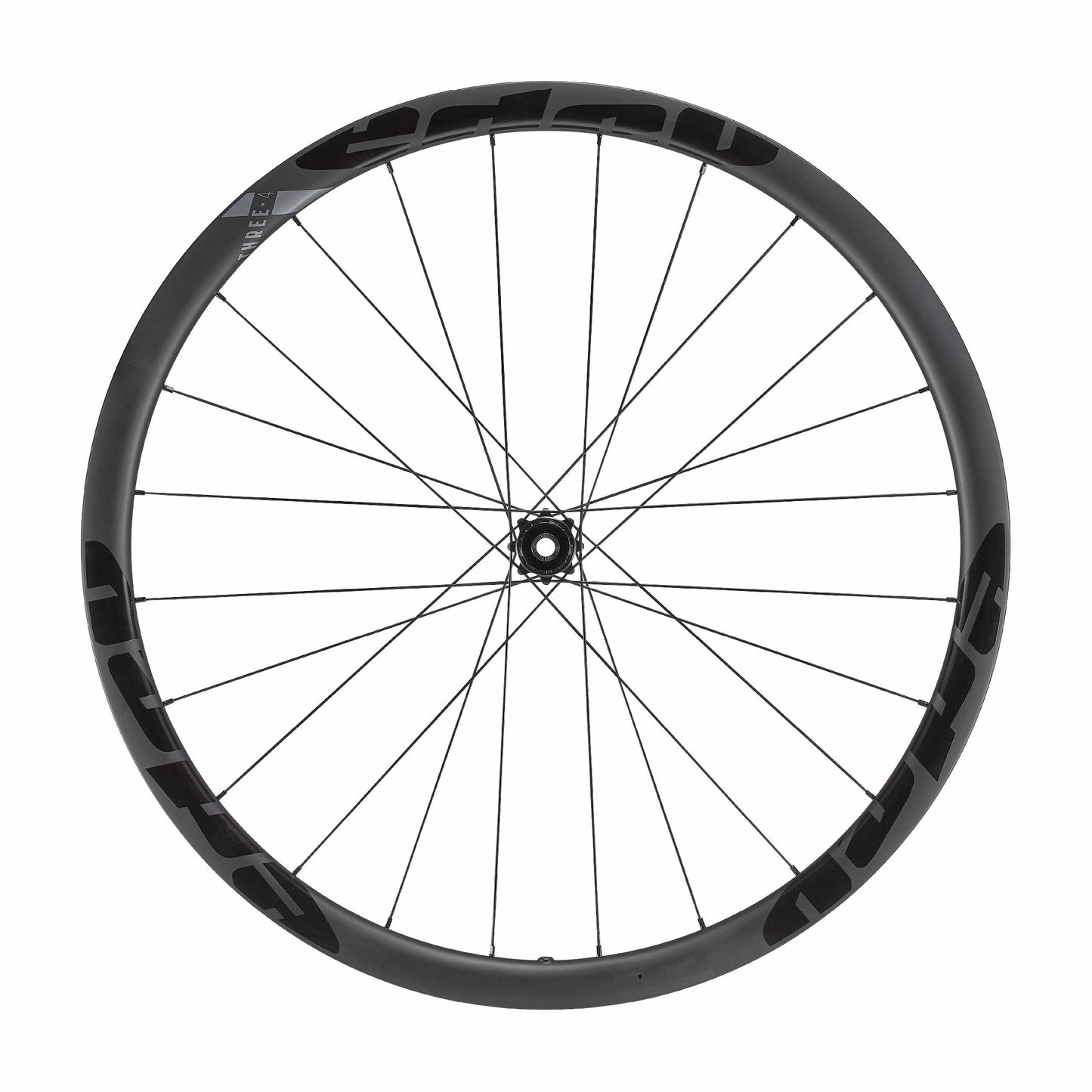

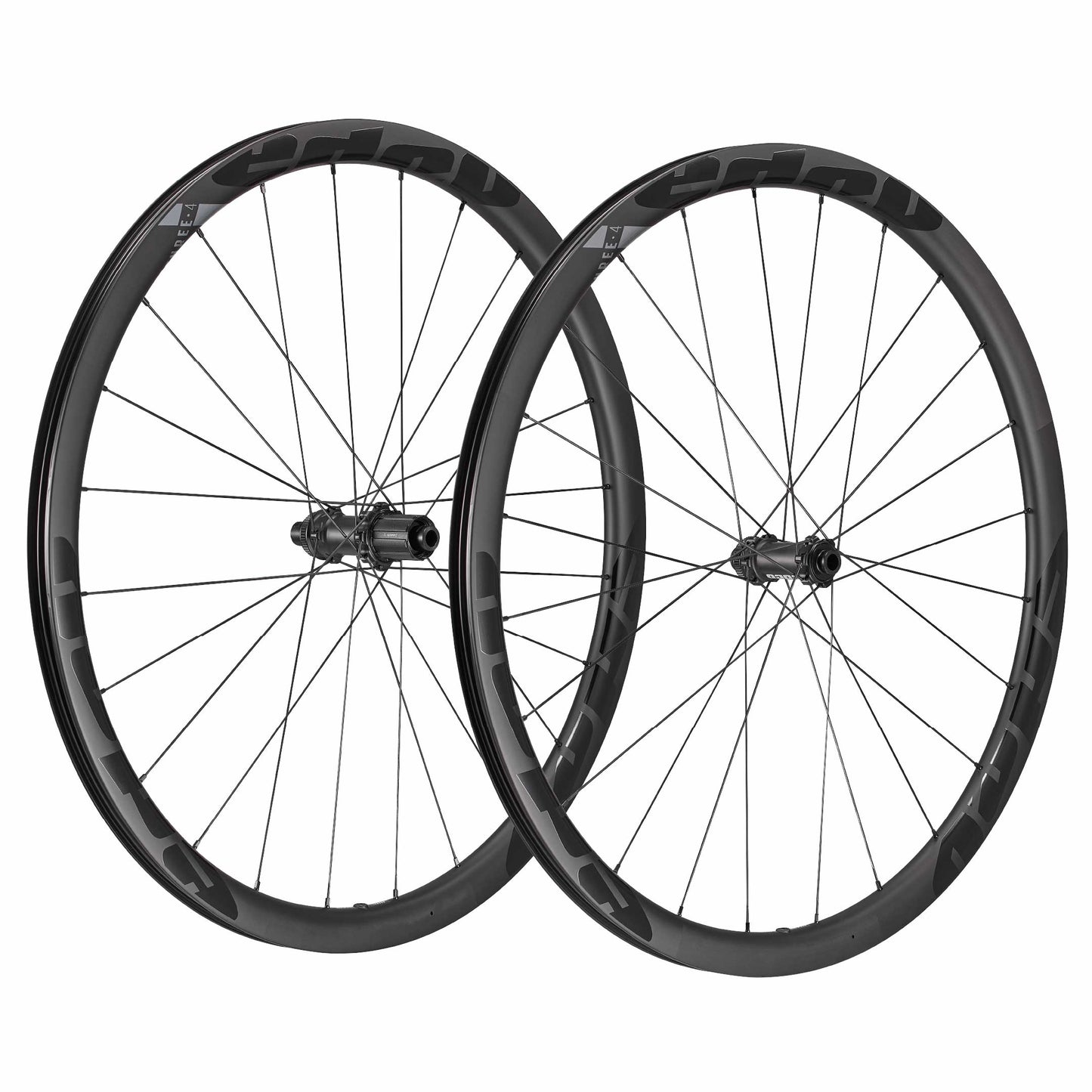

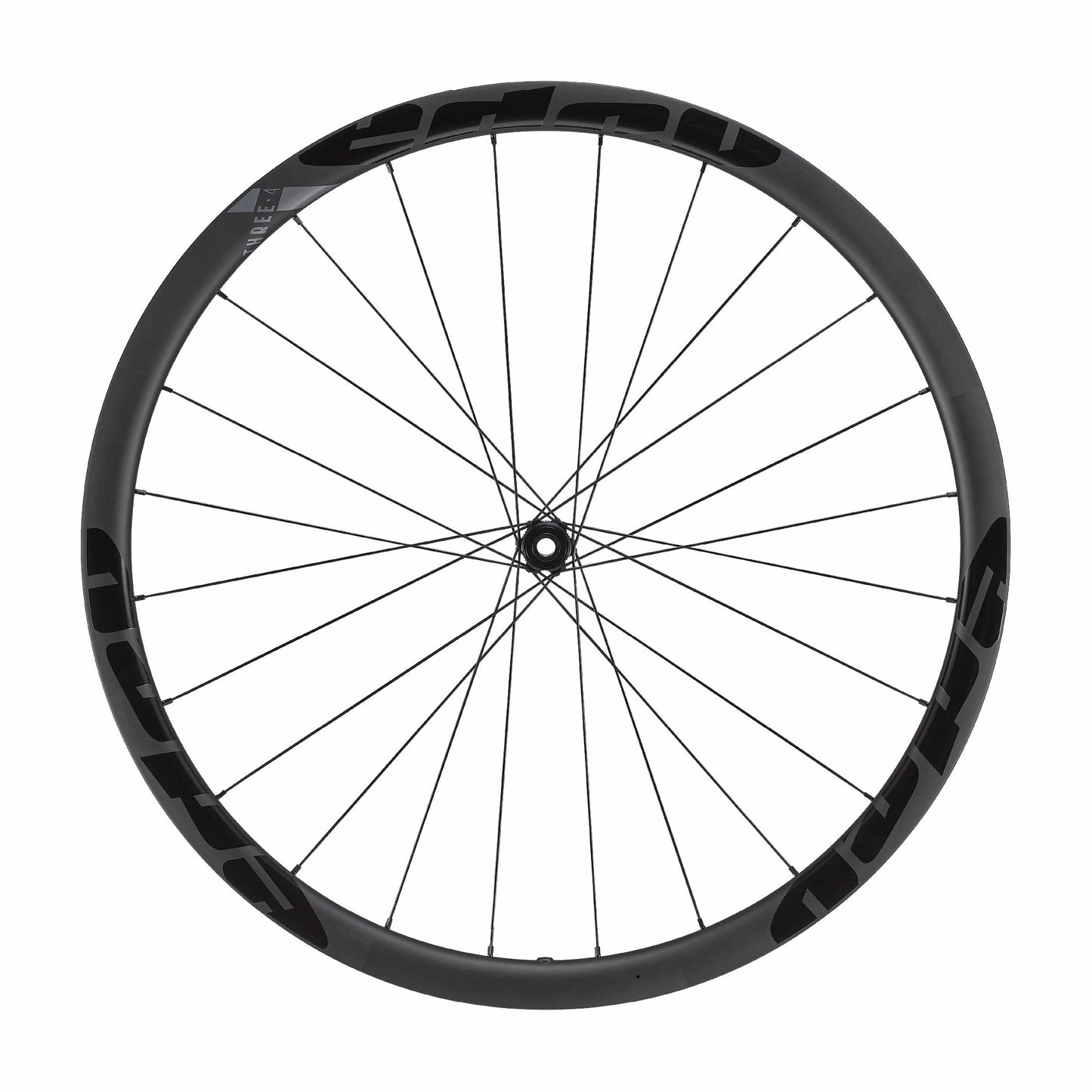

THREE·4 DB

Name: THREE·4 DB
Brand: EDCO
SKU: 6096506120124-SHI
Price: 491.0 USD
Availability: InStock

$491.00 USD

~~$819.00 USD~~ $491.00 USD

40% OFF Sold out

Shipping calculated at checkout.

1450g · 34 X 28.0mm · 21mm inside · TLR · Shimano-SRAM HG11

The HG11 freehub is compatible with the following cassettes:

Shimano 12sp
Shimano 11sp
SRAM 11sp

For XDR 12sp and Campagnolo, please add the correct freehub to your order when available.

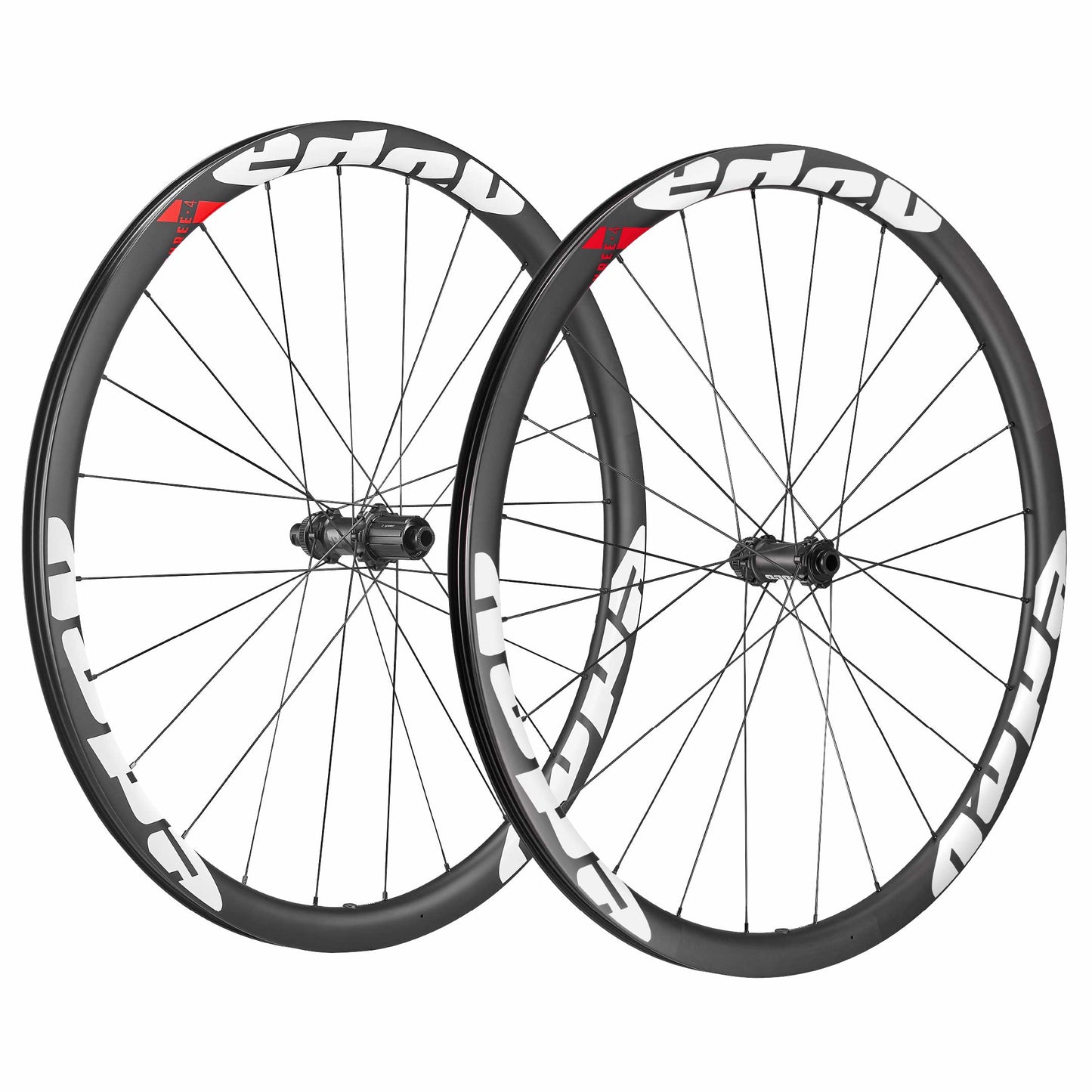

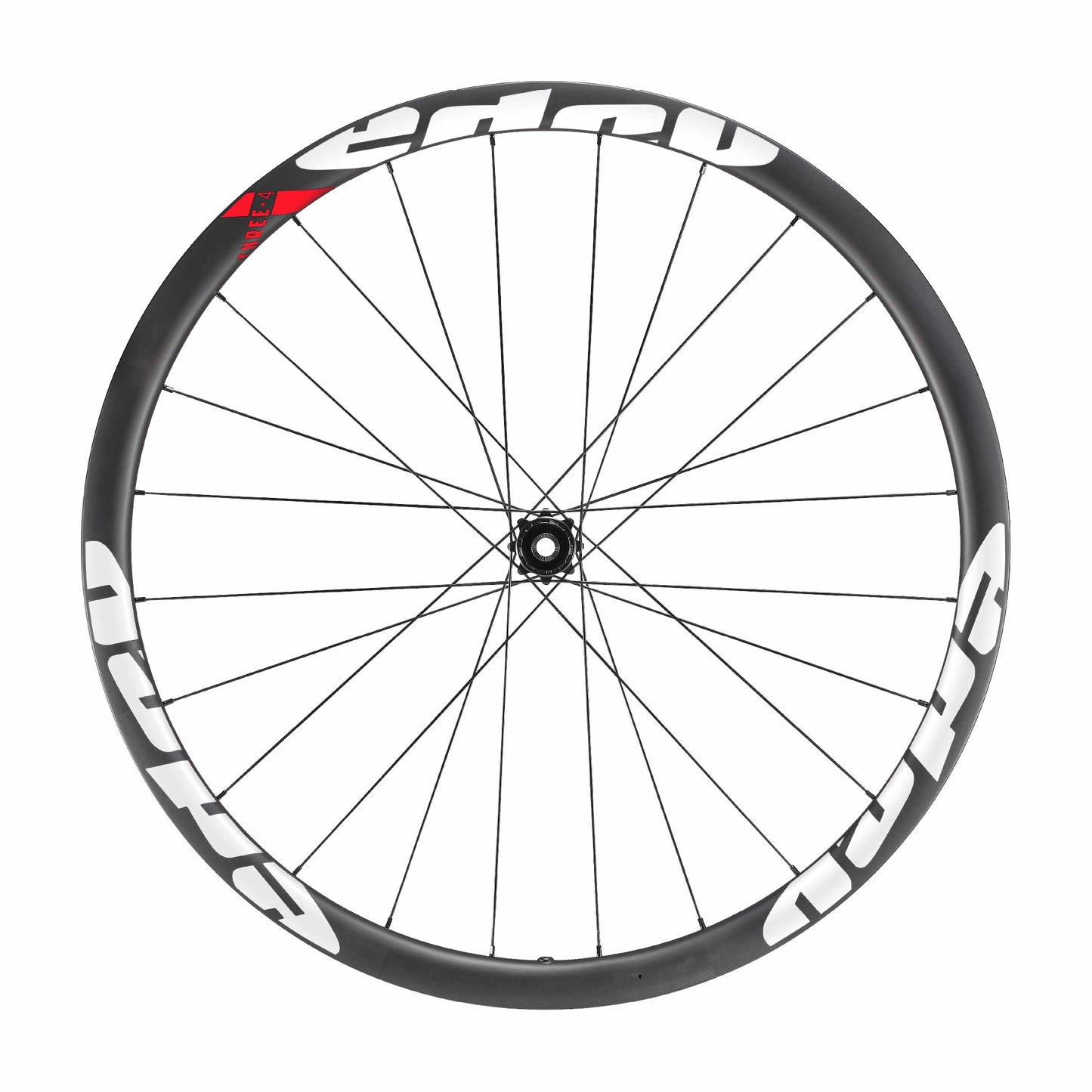

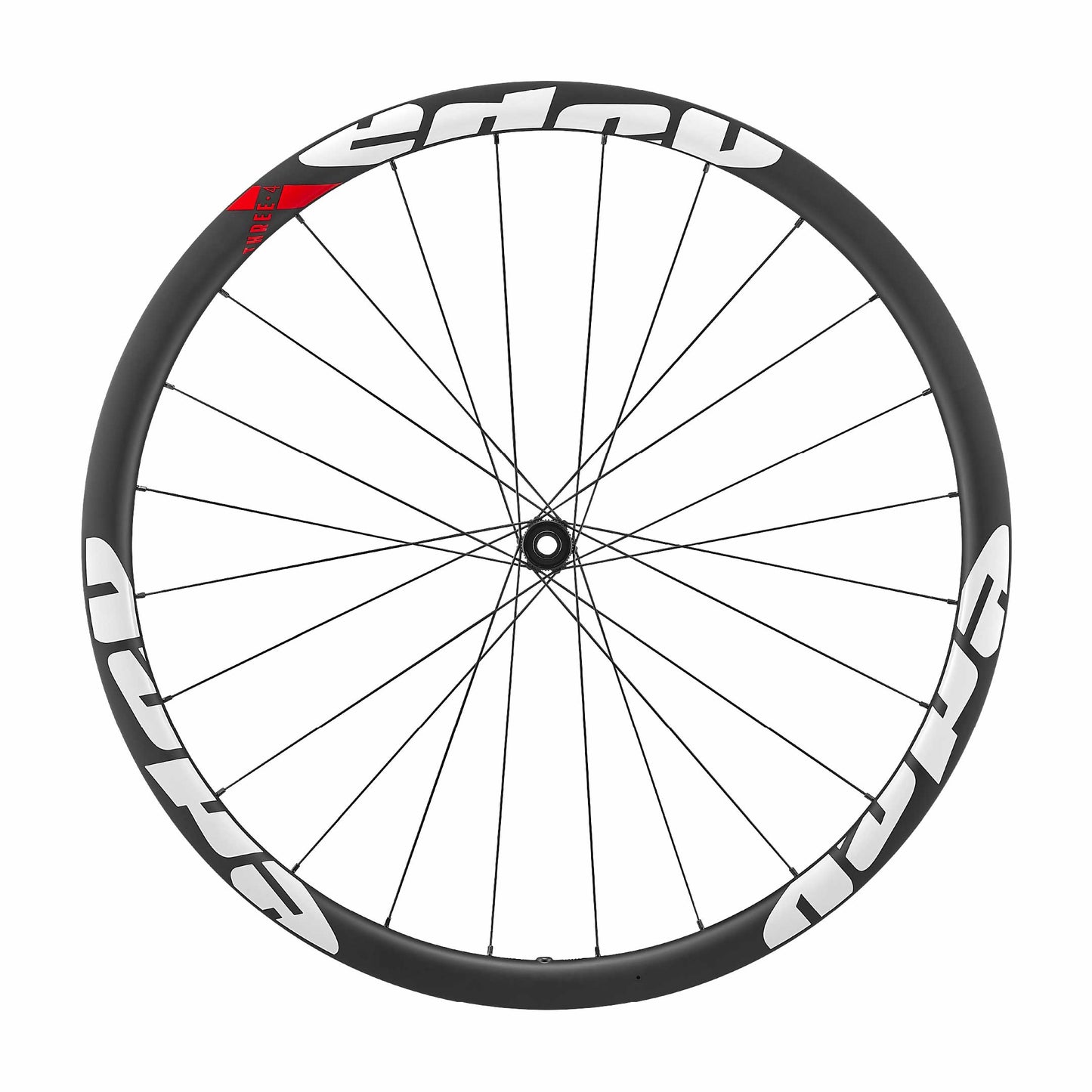

color black/anthracite white/red

Product variants

SKU:SKU: 6096506120124-SHI

WEIGHT

Wheel set weight: 1450g (± 2%).
Max. allowed system weight: 120kg.

RIM

Disc-Specific and Tubeless Ready.

· 34mm depth
· 28.0mm outer width
· 21mm inner width

HUB

DFCN·3 DB
Lightweight hub set with RES·36 Star Ratchet for fast and reliable engagement.

· Thru axle: F: 12 x 100 // R: 12 x 142
· Spokes: F: 12x-12x // R: 16x-8x
· CenterLock
· Straight pull
· TPI bearings

SPOKE

Pillar Wing 20:
· Aero shape
· Lightweight → 4.3g @ L260mm
· Stiff and strong
· Sandvik steel
· Reinforced elbow
· Straight pull

NIPPLE

Pillar DSN 16:
· 14G
· 16mm
· Brass

COMES WITH..

Tubeless tape installed.
(Thru Axles sold separately).

View full details

SPECS

Rim
Disc-Specific and Tubeless Ready.

· 34mm depth
· 28.0mm outer width
· 21mm inner width
Hub
DFCN·3 DB
Lightweight hub set with RES·36 Star Ratchet for fast and reliable engagement.

· Thru axle: F: 12 x 100 // R: 12 x 142
· Spokes: F: 12x-12x // R: 16x-8x
· CenterLock
· Straight pull
· TPI bearings
Spoke
Pillar Wing 20:
· Aero shape
· Lightweight → 4.3g @ L260mm
· Stiff and strong
· Sandvik steel
· Reinforced elbow
· Straight pull
Weight
Wheel set weight: 1450g (± 2%).
Max. allowed system weight: 120kg.
Nipple
Pillar DSN 16:
· 14G
· 16mm
· Brass
Comes with..
Tubeless tape installed.
(Thru Axles sold separately).

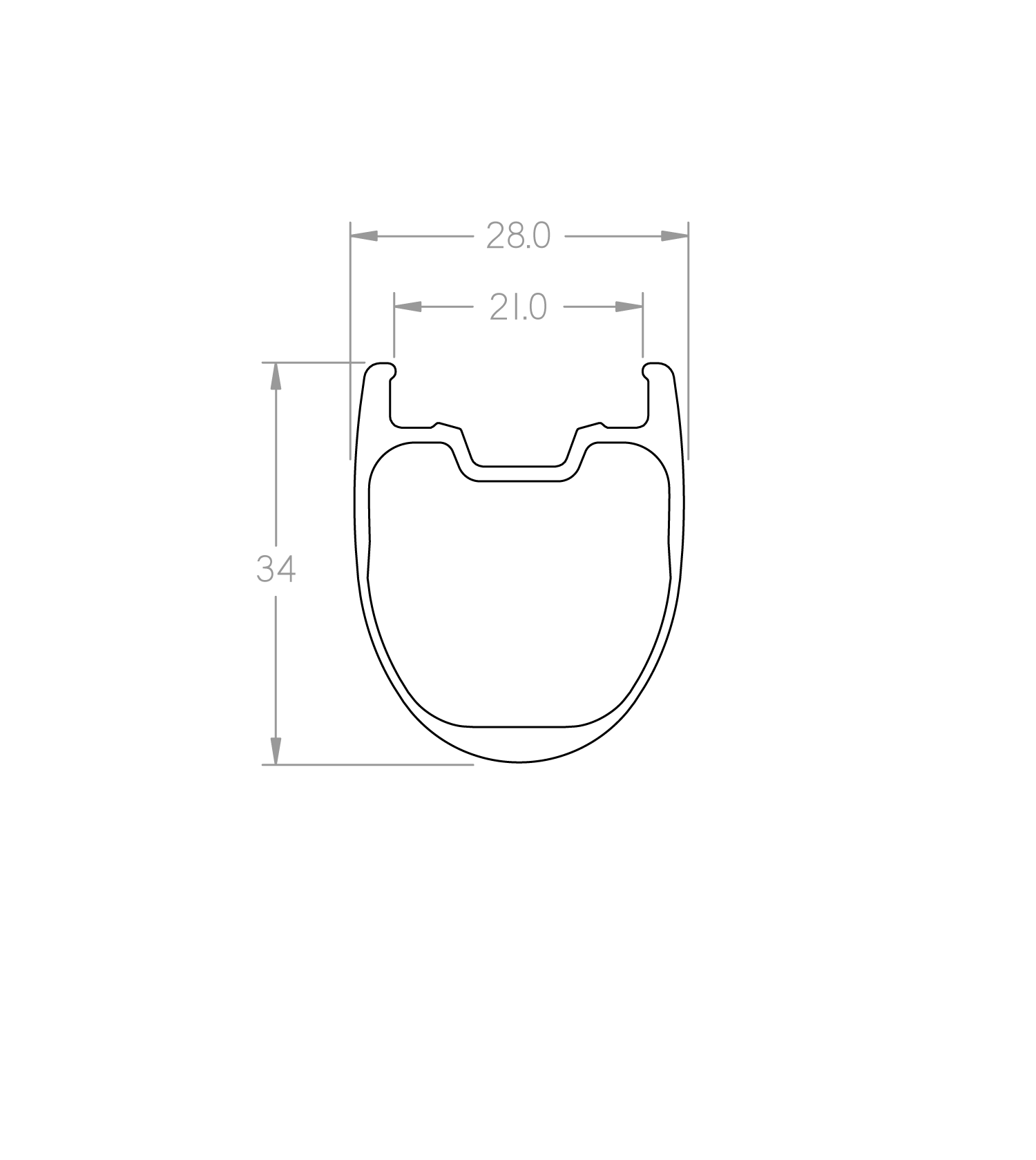

R34·DB

· 21mm wide to fit larger tires.

· U-shaped profile for maximum aero performance, even with bigger tires.

· Raised lip for burp-free and solid tubeless setup.

· Lowered box section to allow easy tire assembly.

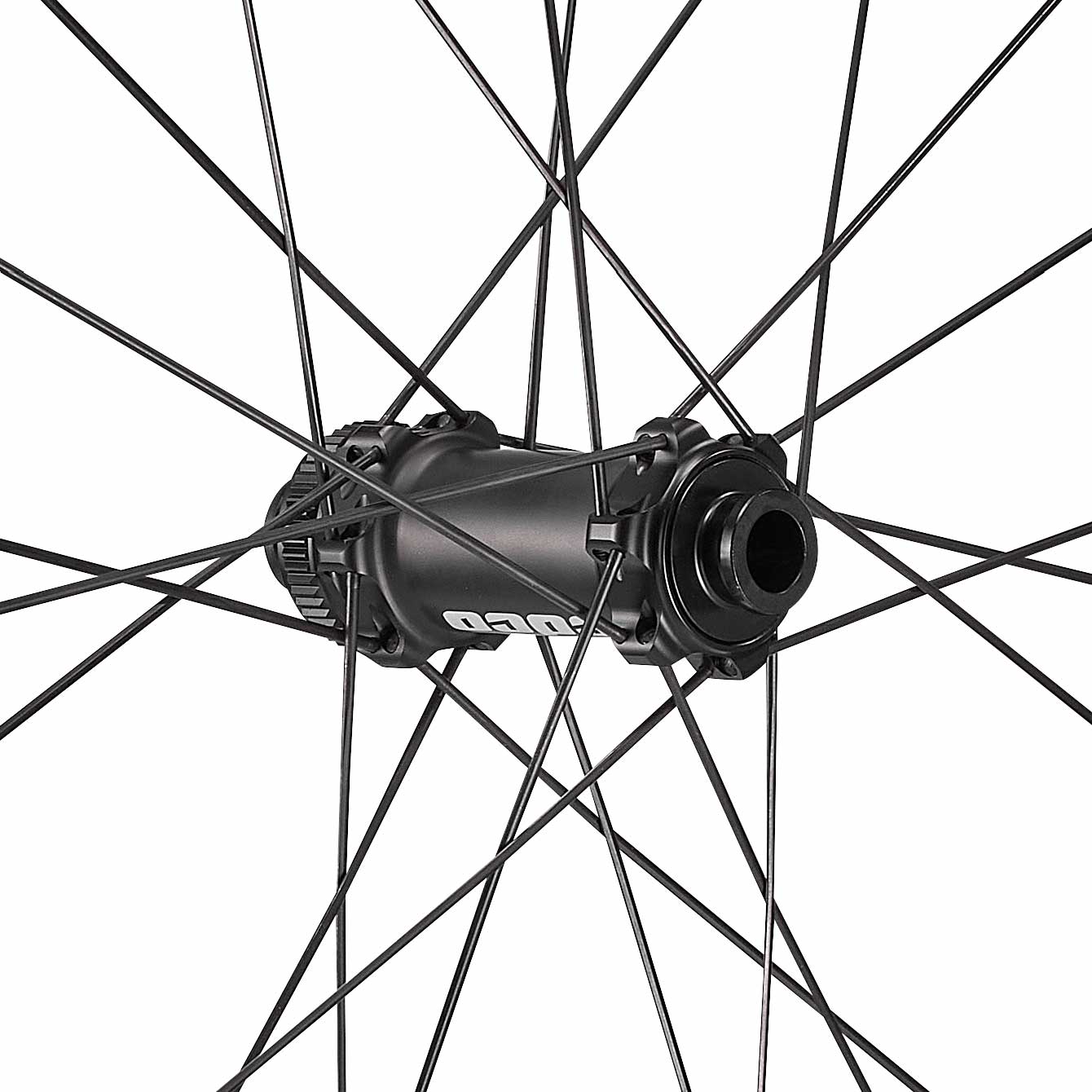

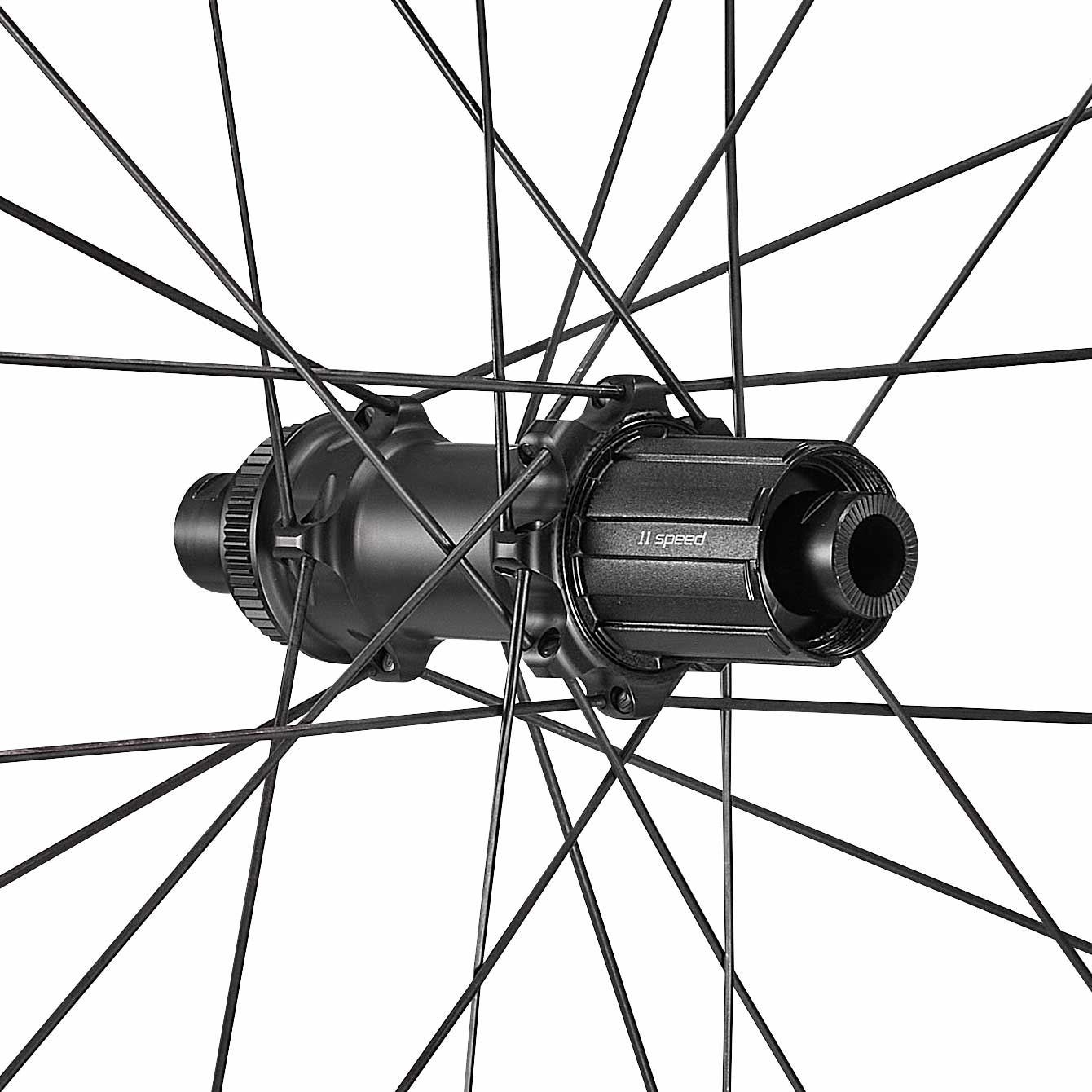

DFCN·3 DB

· RES-36 Star ratchet with a fast and reliable 10° engagement.

· Rear hub has a 2:1 spoke layout to have a more balanced spoke tension on Drive and Non-Drive Side.

· Compatible with Shimano, SRAM and Campagnolo. See 'freehub' option box.
