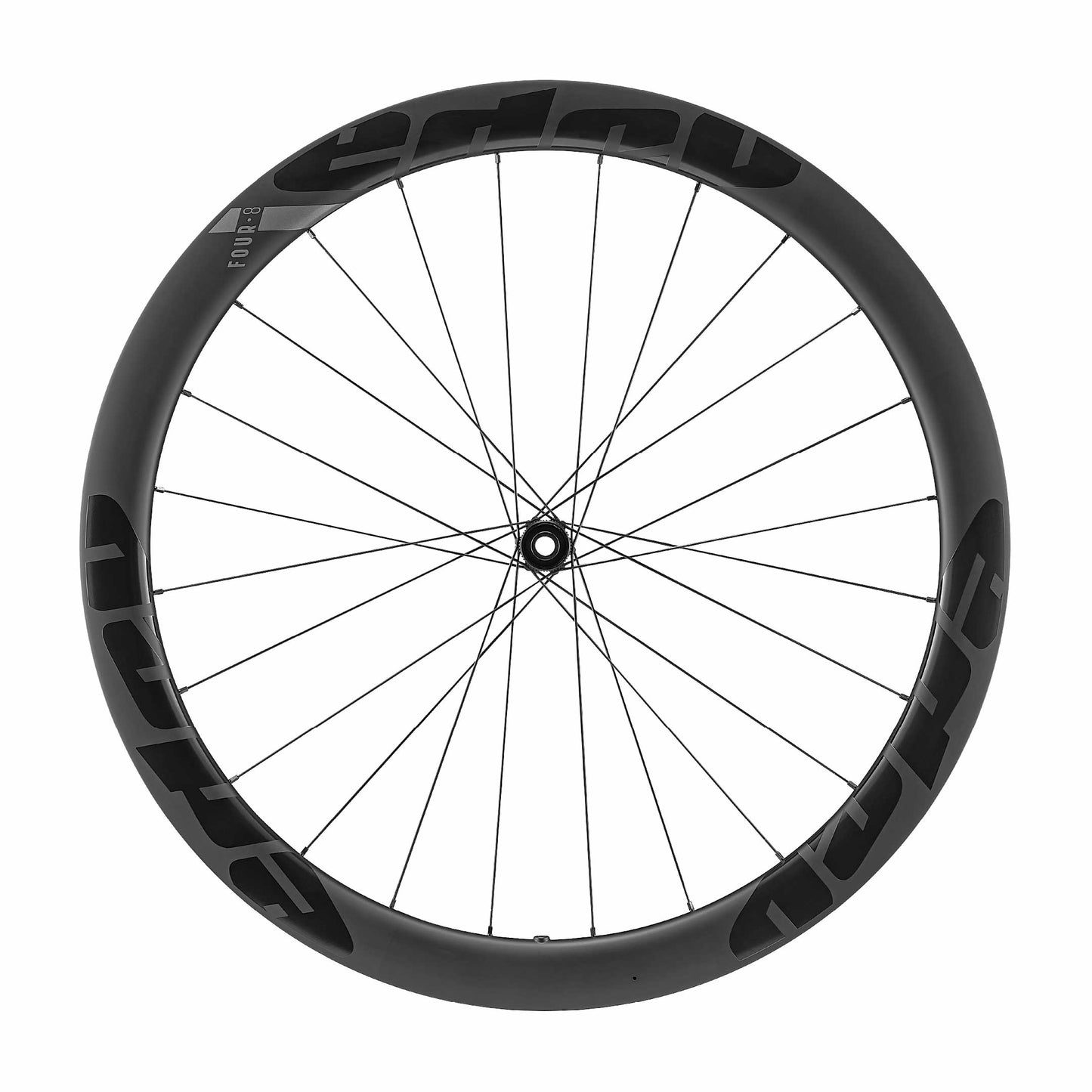

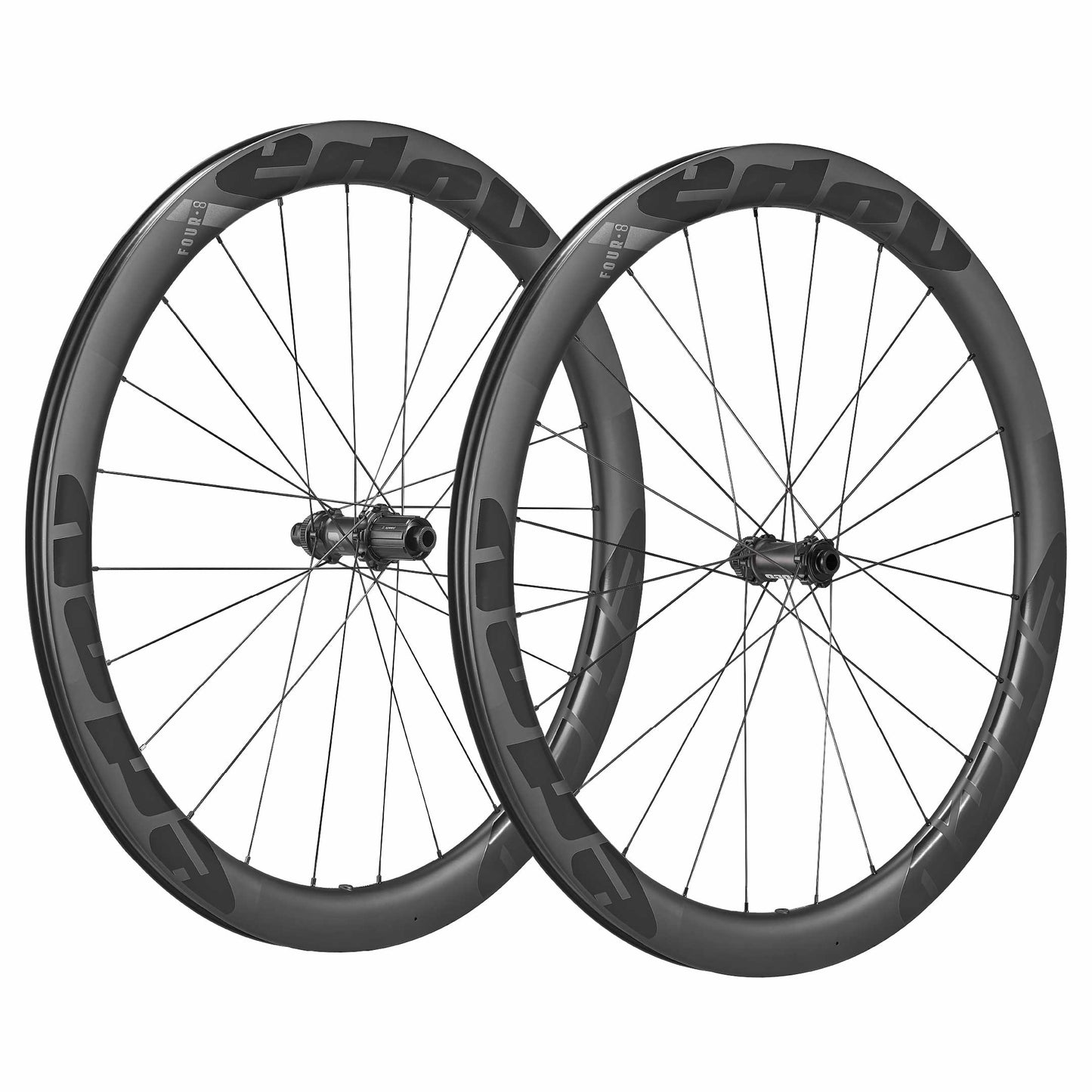

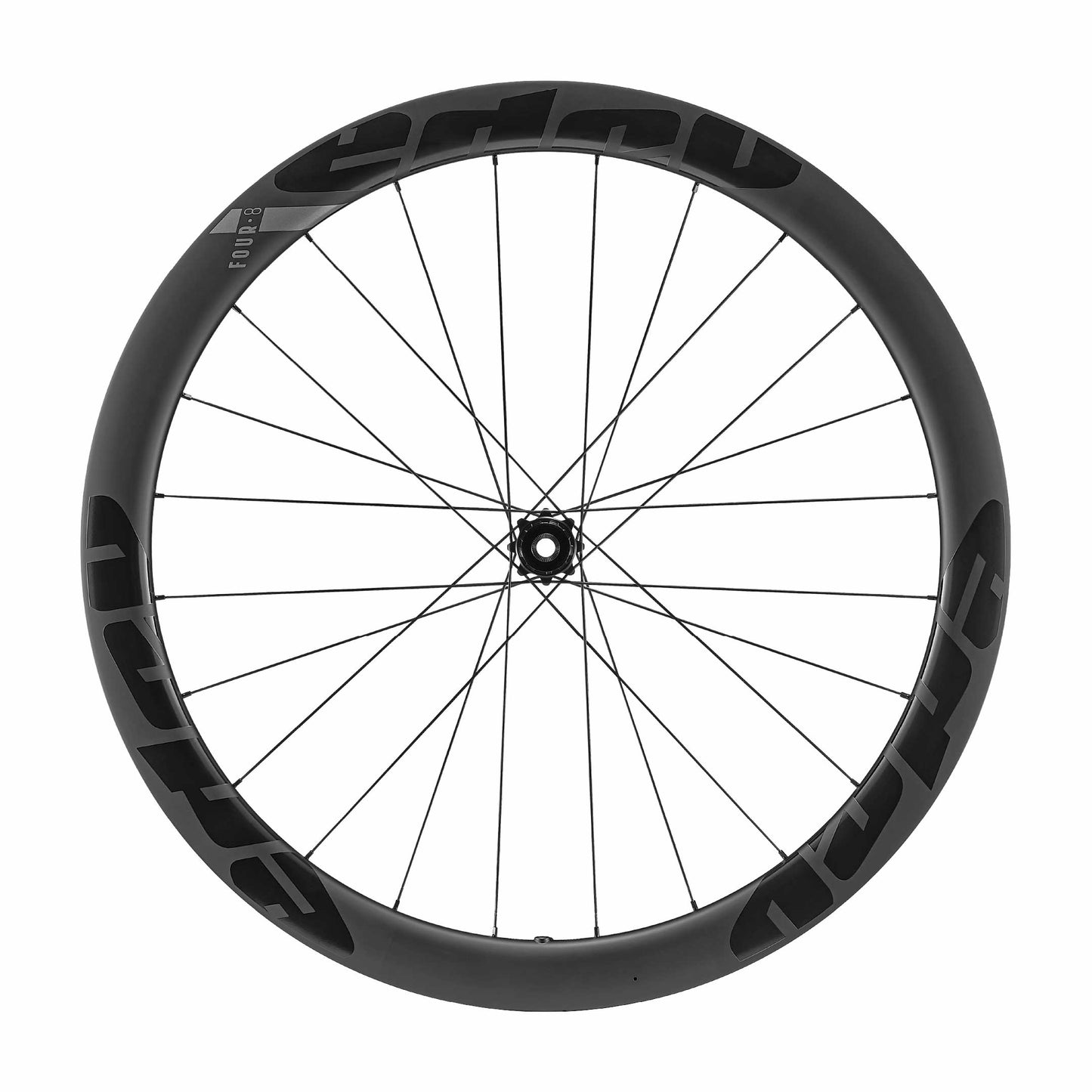

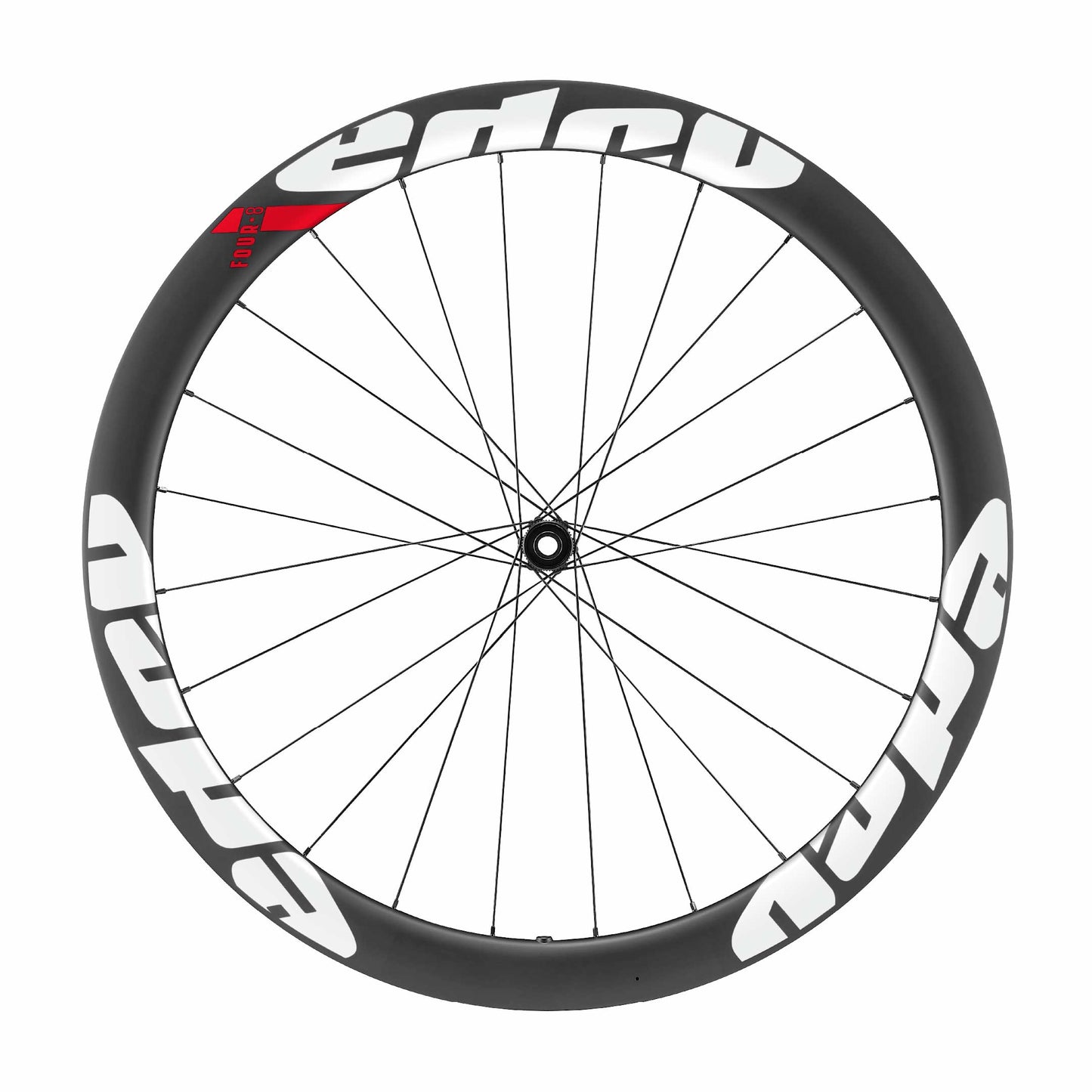

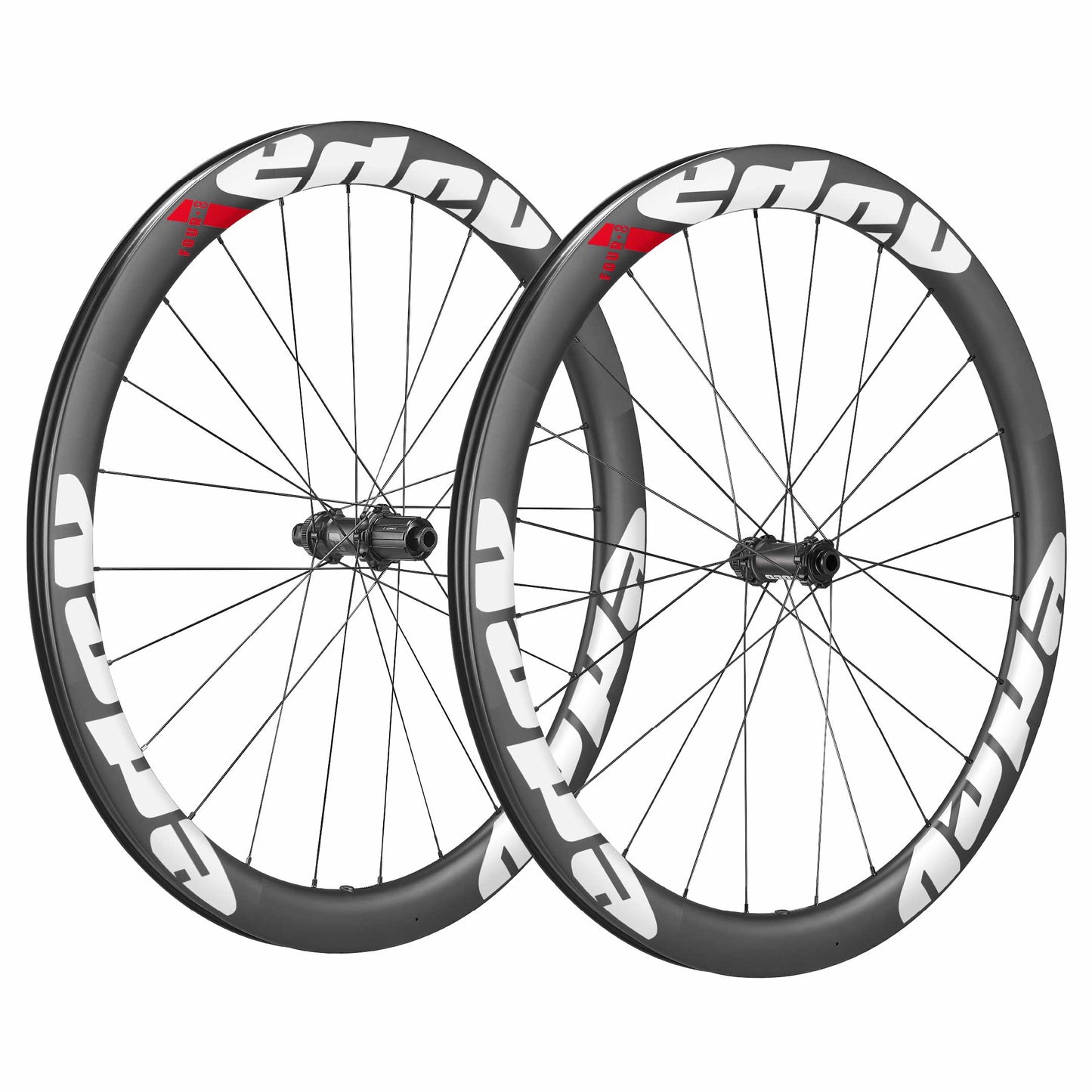

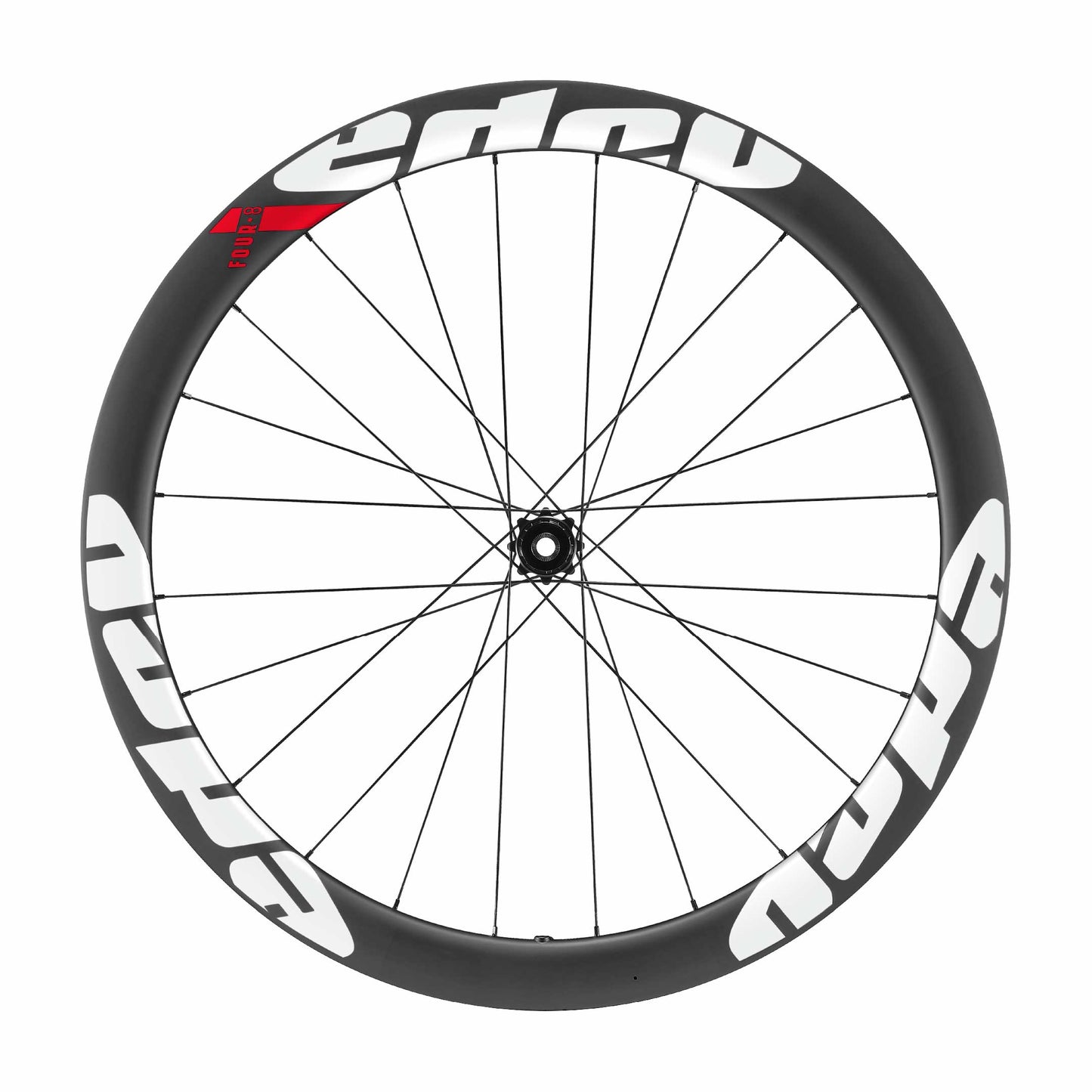

The versatile FOUR·8, suited to all kinds of terrain

1 8

FOUR·8 DB

FOUR·8 DB

$859.00 USD
$859.00 USD $859.00 USD
Sale Sold out
Shipping calculated at checkout.

1510g · 48 X 28.7mm · 21mm inside · TLR

color
freehub
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

SKU: 6096505310366-SHI

View full details

SPECS

  • Rim

    Disc-Specific and Tubeless Ready.

    · 48mm depth
    · 28.7mm outer width
    · 21mm inner width

  • Hub

    DFCN·3 DB
    Lightweight hub set with RES·36 Star Ratchet for fast and reliable engagement.

    · Thru axle: F: 12 x 100 // R: 12 x 142
    · Spokes: F: 12x-12x // R: 16x-8x
    · CenterLock
    · Straight pull
    · TPI bearings

  • Spoke

    Pillar Wing 20:
    · Aero shape
    · Lightweight → 4.3g @ L260mm
    · Stiff and strong
    · Sandvik steel
    · Reinforced elbow
    · Straight pull

  • Weight

    Wheel set weight: 1510g (± 2%).
    Max. allowed system weight: 120kg.

  • Nipple

    Pillar DSN 16:
    · 14G
    · 16mm
    · Brass

  • Comes with..

    Tubeless tape installed.
    (Thru Axles sold separately).

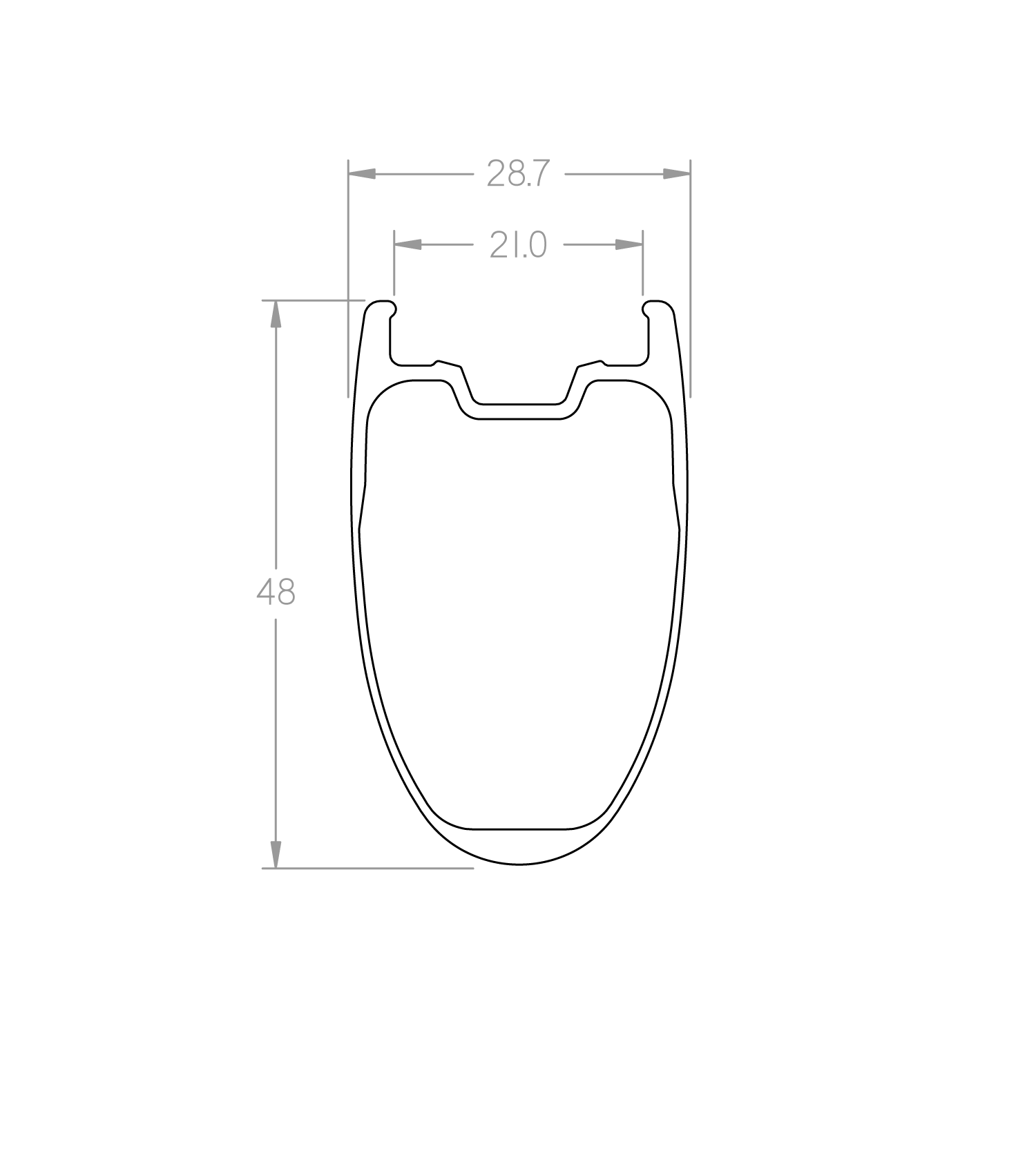

R48·DB

· 21mm wide to fit larger tires.

· U-shaped profile for maximum aero performance, even with bigger tires.

· Raised lip for burp-free and solid tubeless setup.

· Lowered box section to allow easy tire assembly.

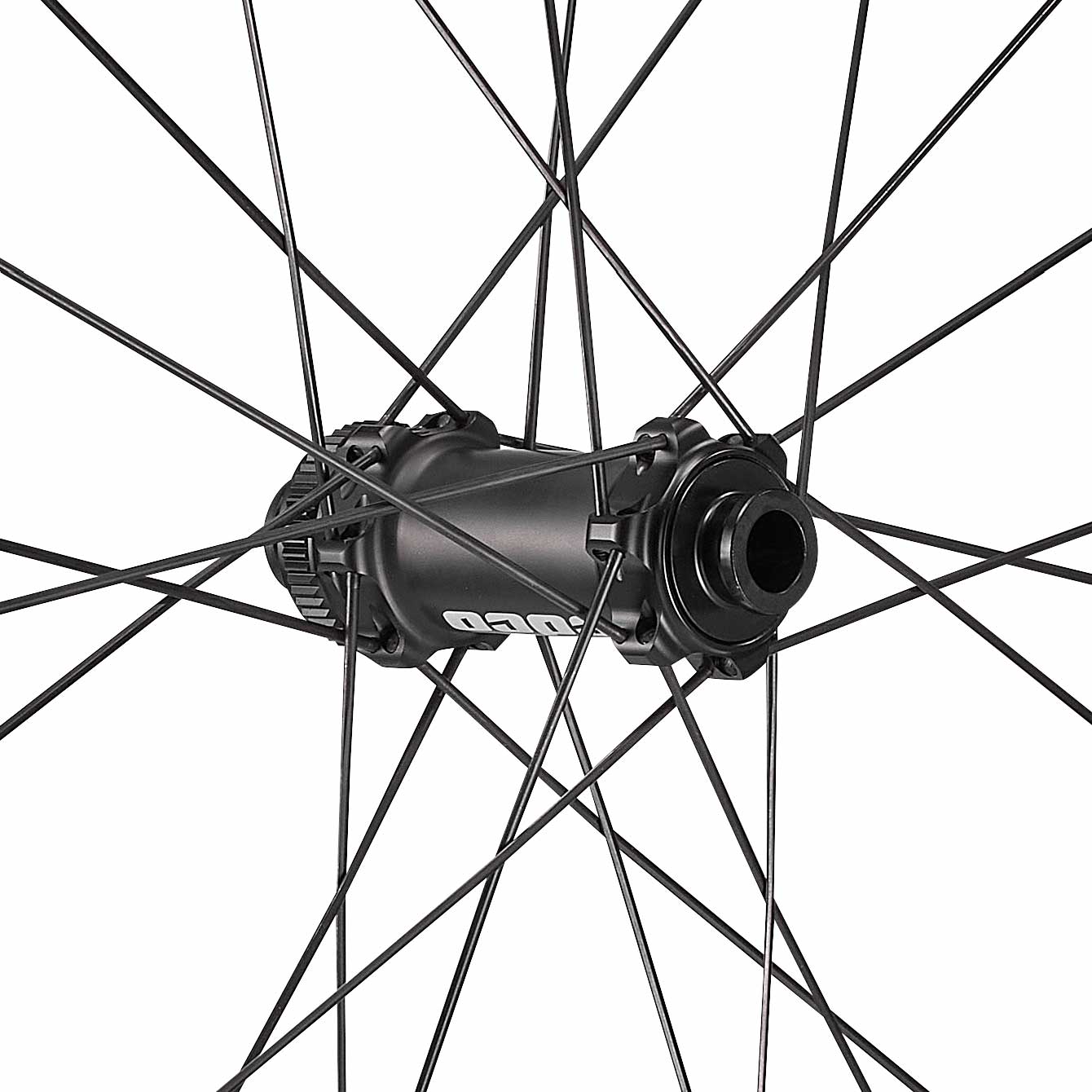

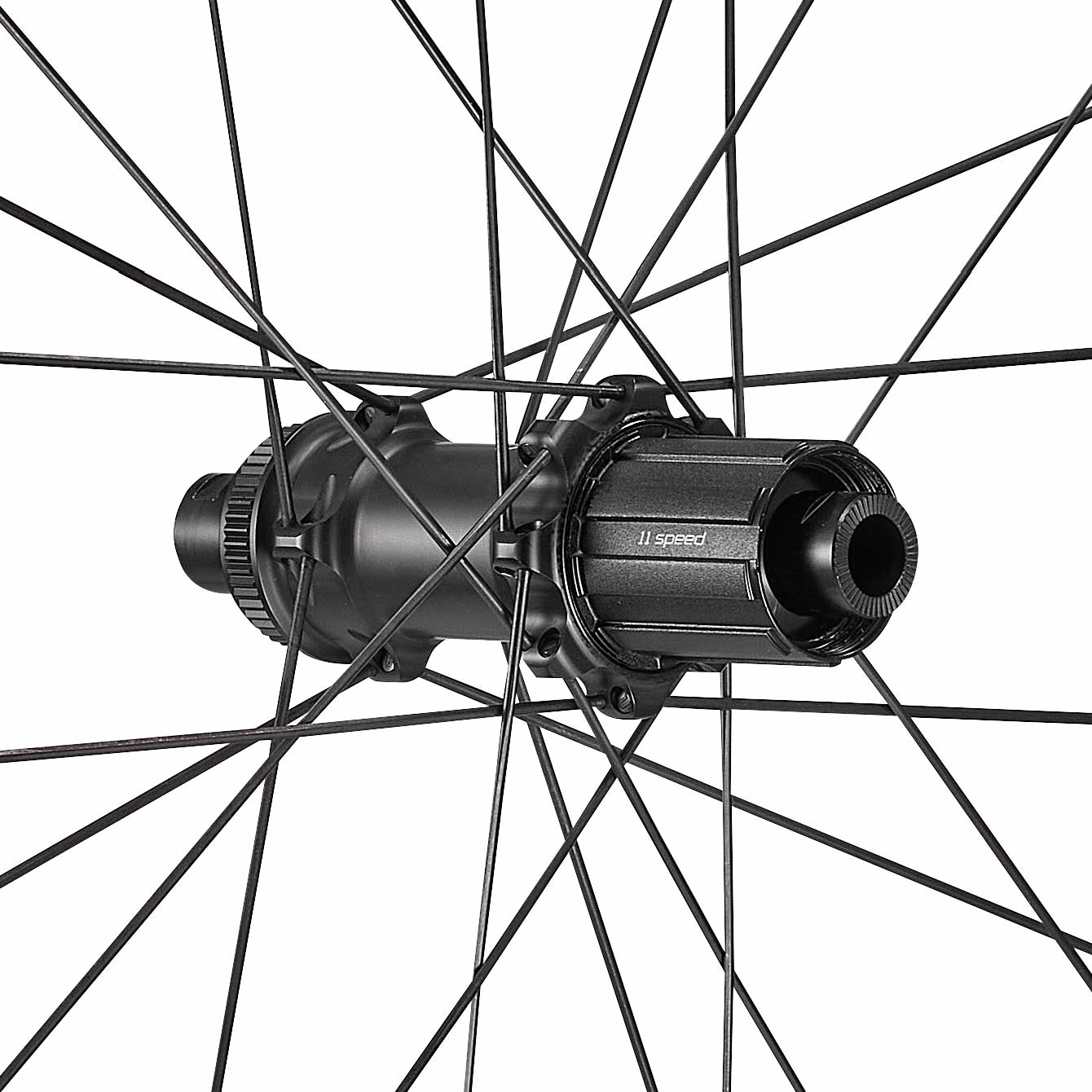

DFCN·3 DB

· RES-36 Star ratchet with a fast and reliable 10° engagement.

· Rear hub has a 2:1 spoke layout to have a more balanced spoke tension on Drive and Non-Drive Side.

· Compatible with Shimano, SRAM and Campagnolo. See 'freehub' option box.
